Crawley Creatures CNC Dakotaraptor
Envisage were approached by Crawley Creatures to manufacture a model of a dinosaur for Travelling Show, Dinosaurs in the Wild.
The Challenge
Envisage were tasked with computer numerical control (CNC) machining a full size, 5-meter Dakotaraptor using lightweight foam.
-

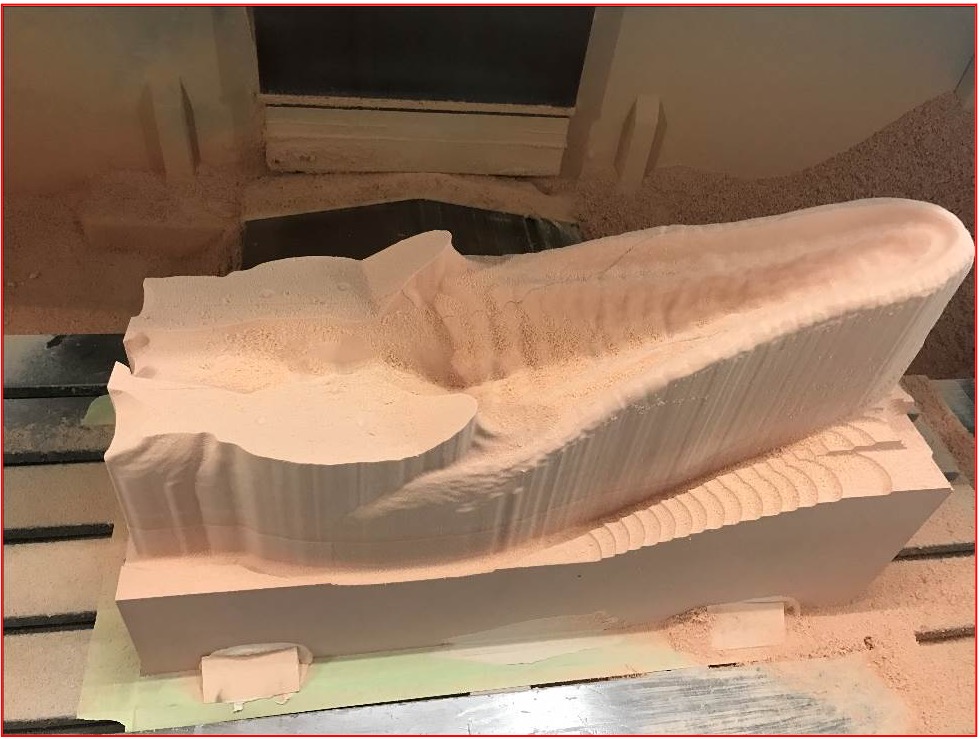

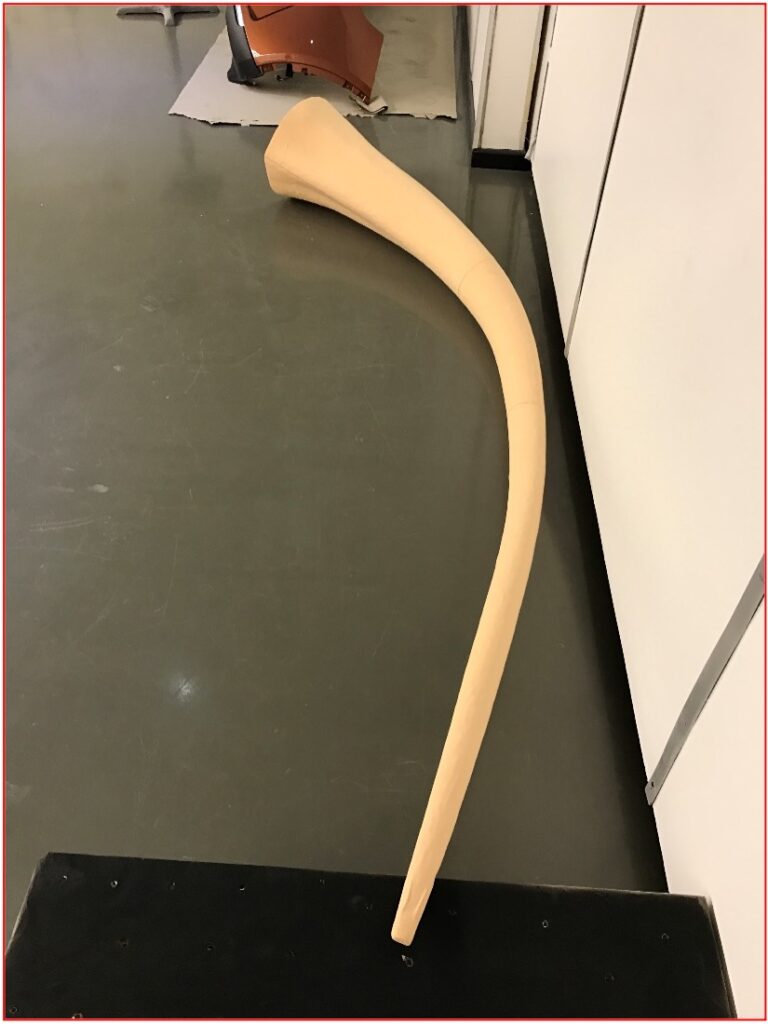

![Dakotaraptor Tail Image]()
-

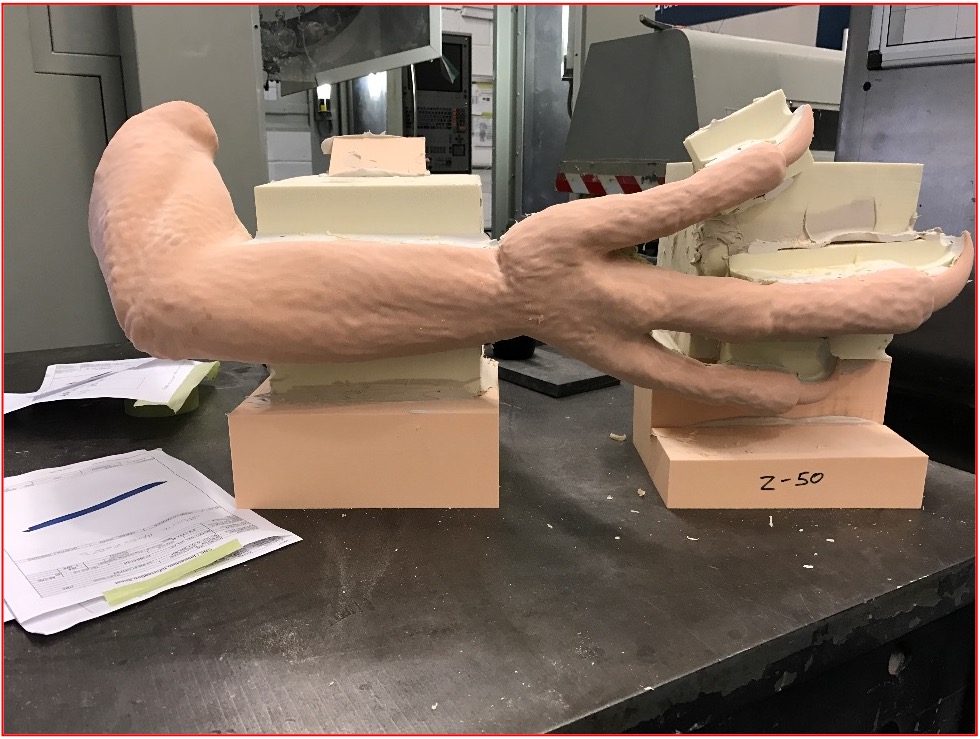

![Dakotaraptor arm with claw]()
Credit Crawley Creatures -
![Dakotatraptor Foot]()
-

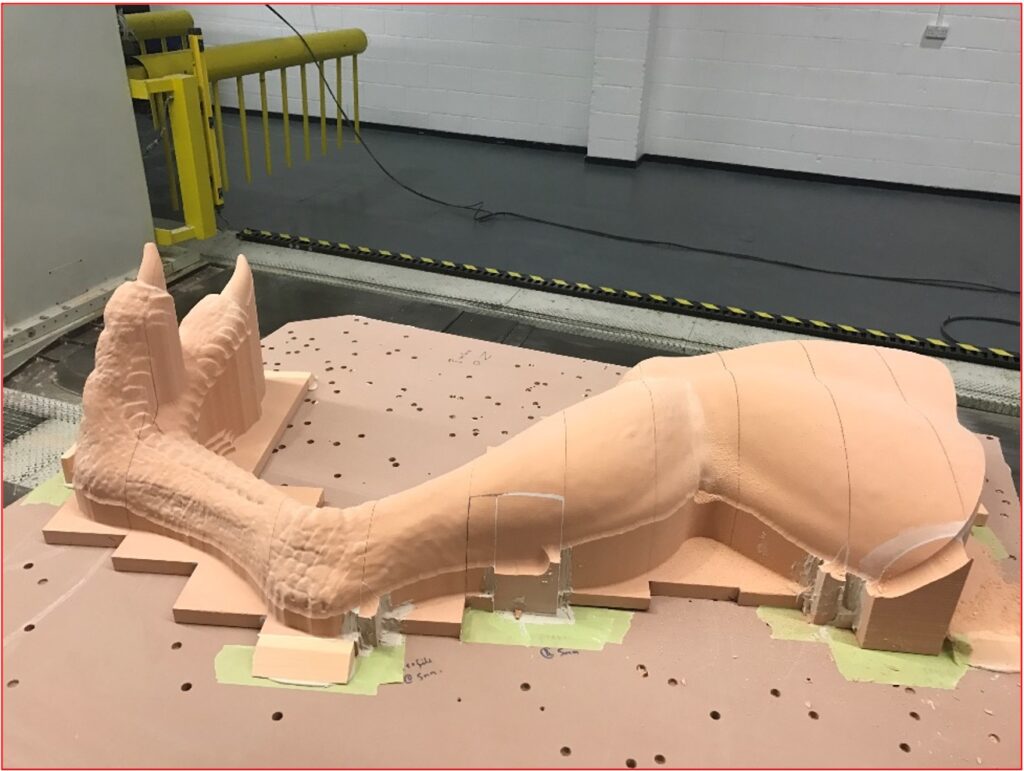

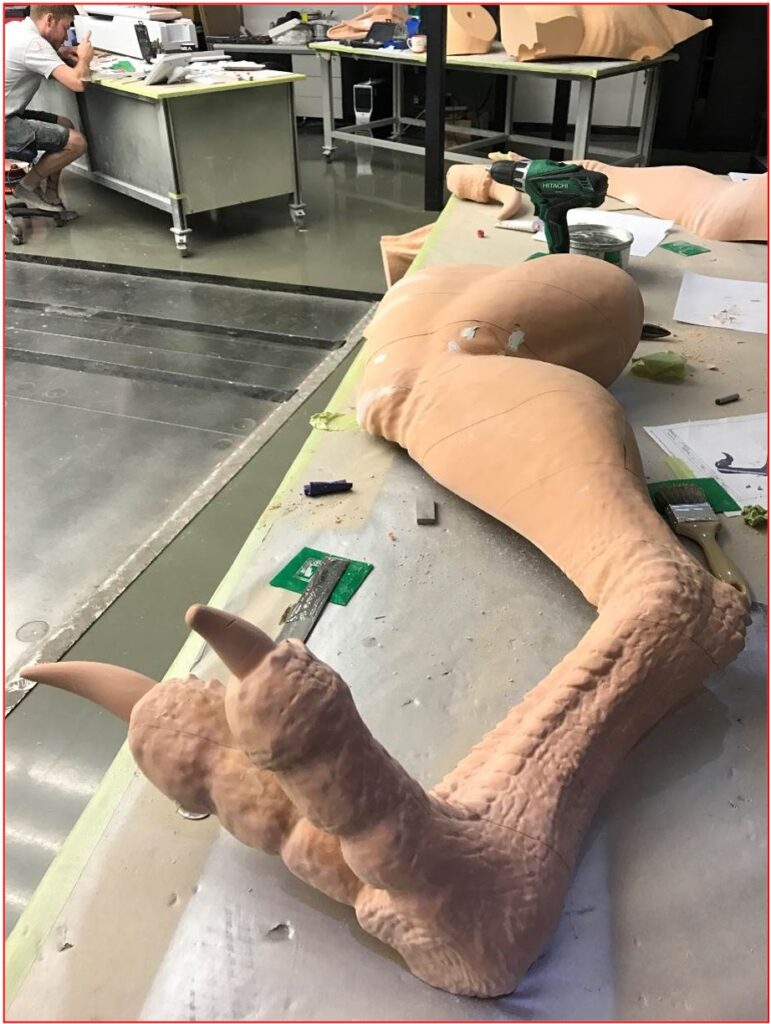

![Dakotaraptor Leg with claw]()
-

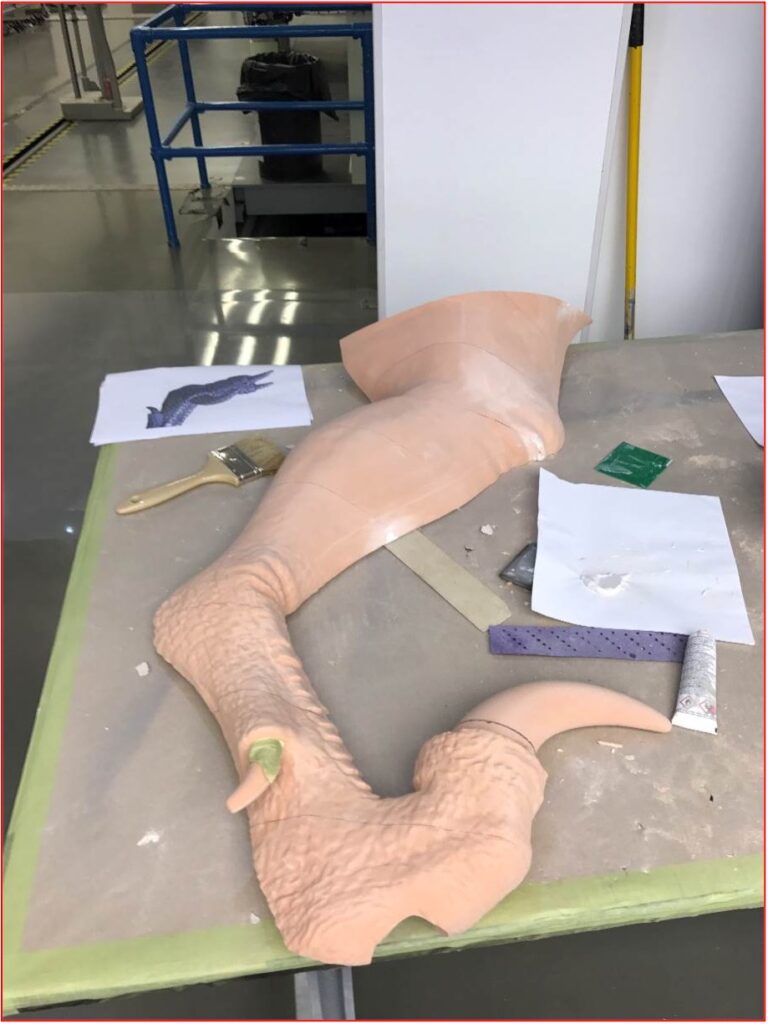

![Dakota Raptor Leg with claw]()
-

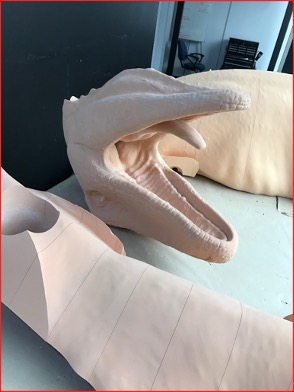

![Dakotaraptor Jaw]()
-

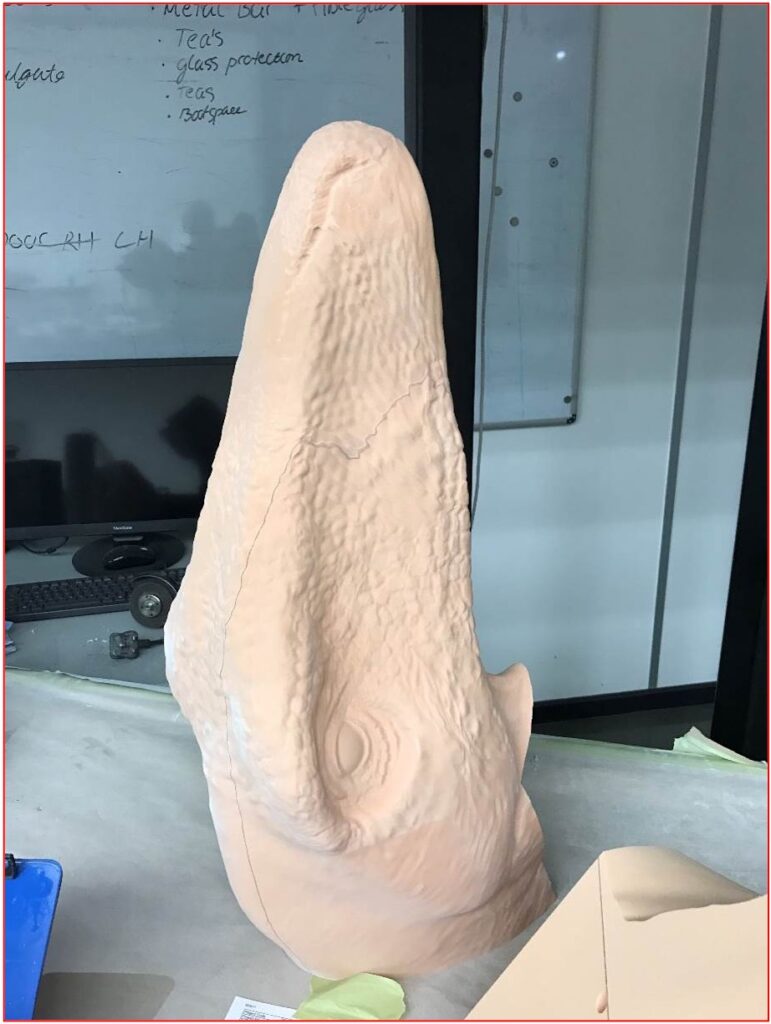

![Dakotaraptor Head]()
-
![Dakotaraptor Head]()
-

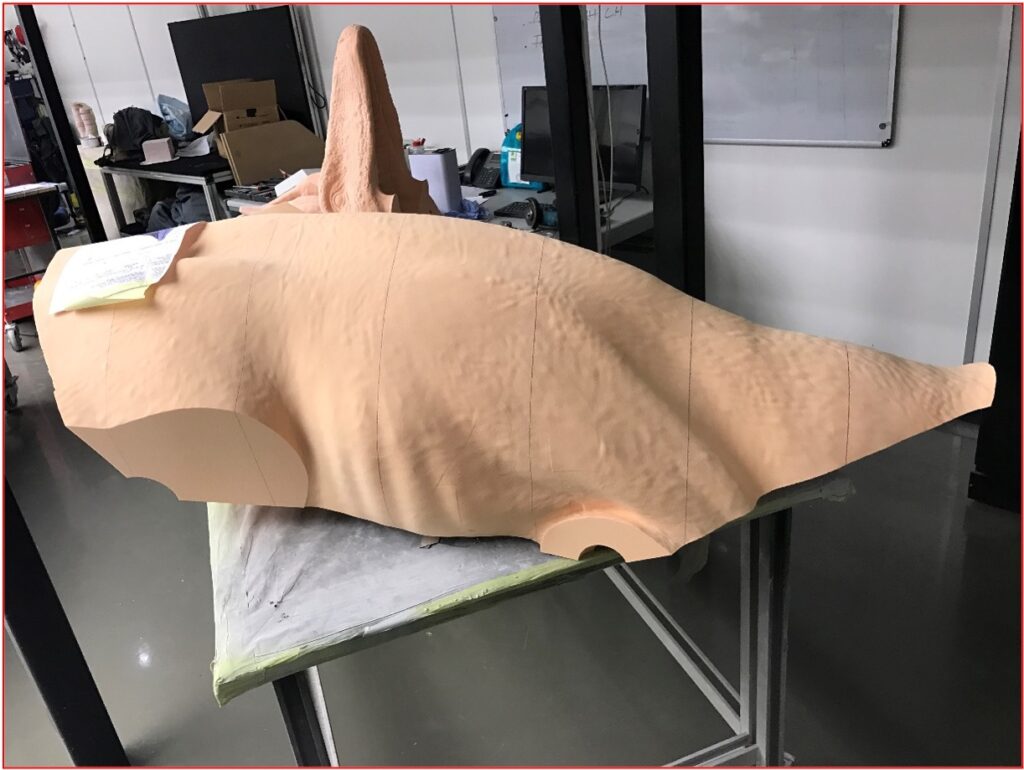

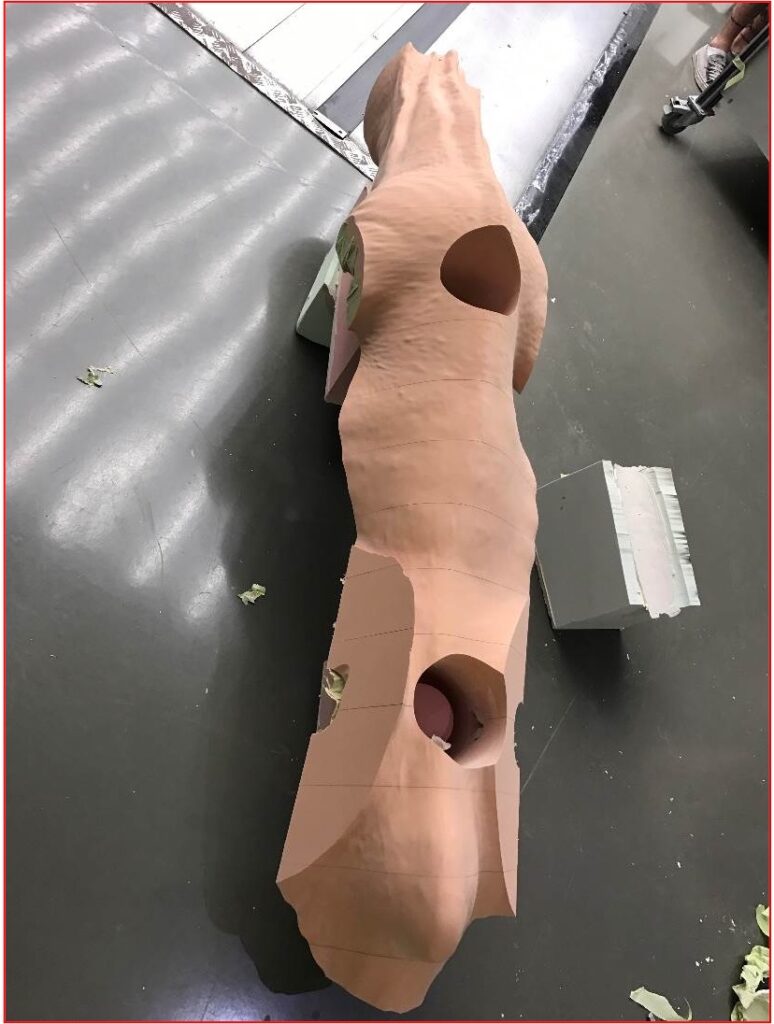

![Dakotaraptor body]()
-

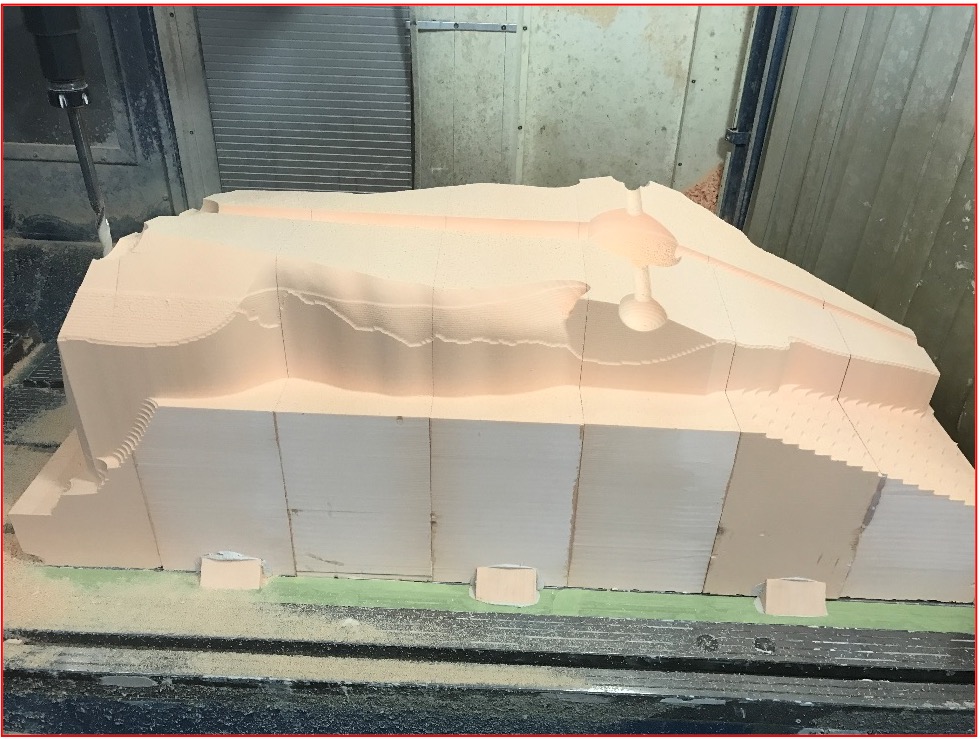

![Dakotaraptor body machined]()
-

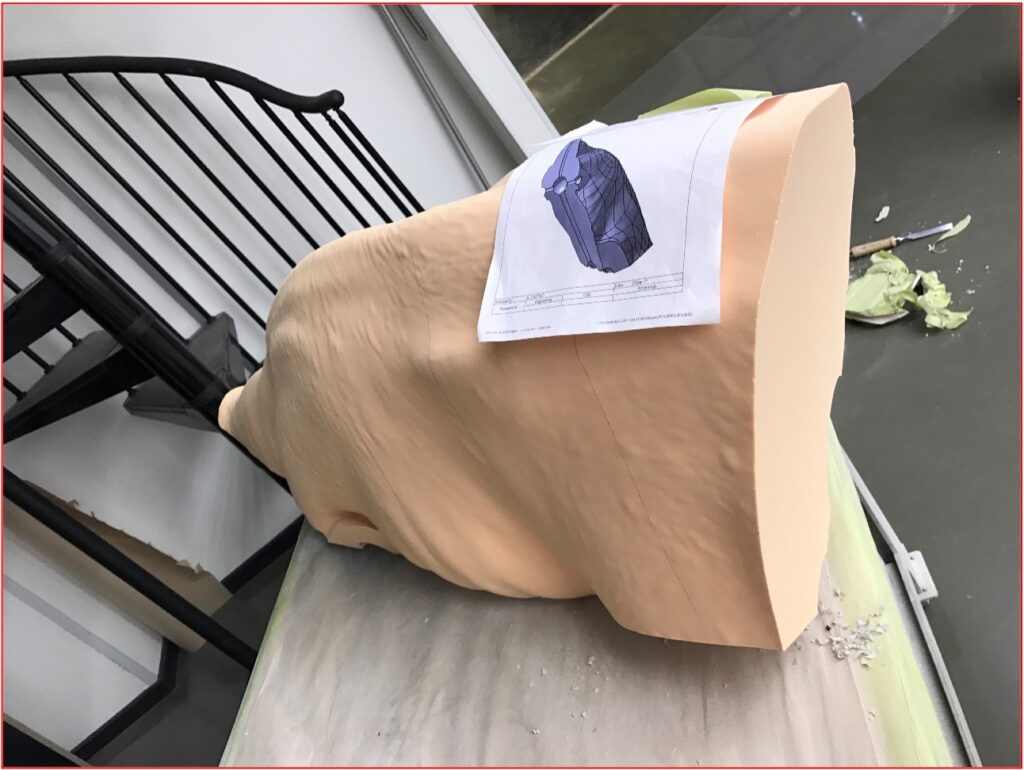

![Dakotaraptor rear body]()
-
![Dakotaraptor body side view]()
-

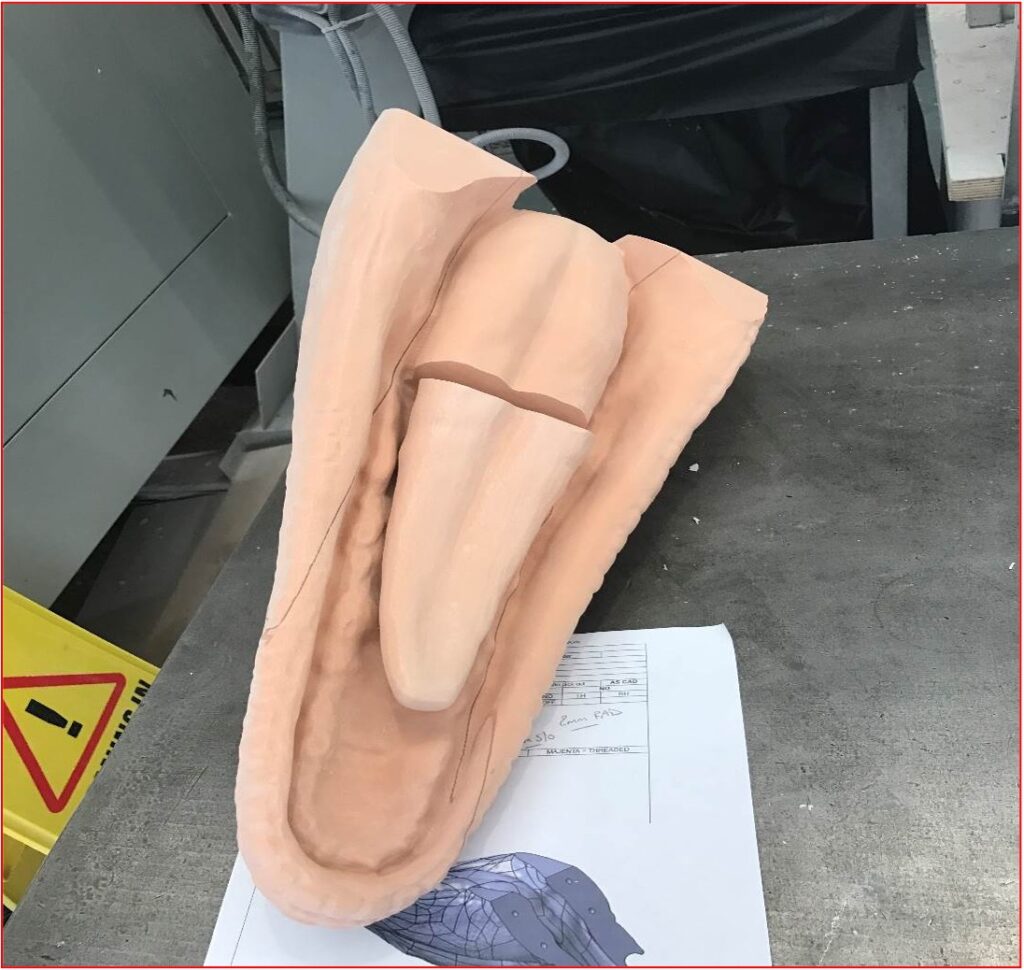

![Bottom of the jaw Dakotaraptor]()
-

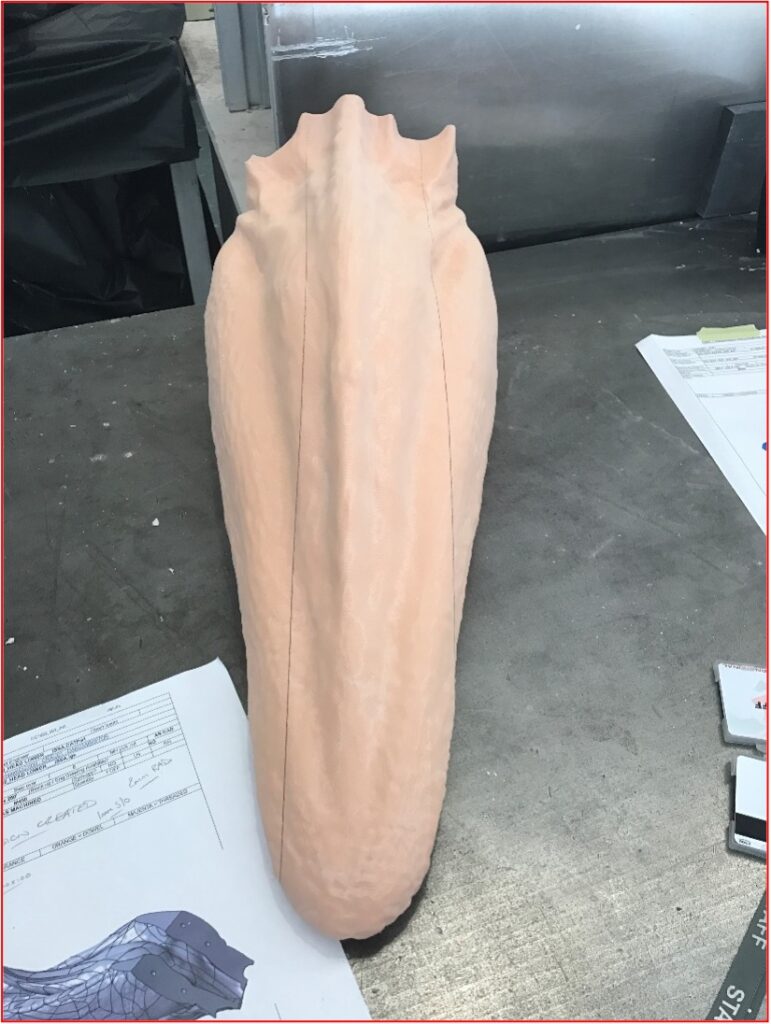

![Dakotaraptor top jaw]()
Our Approach
To make the full model, the data was broken down to make machinable pieces; for example, the head was split into separate parts, legs were split into two, and the body machined separate from the tail. After we machined the pieces, they were then assembled, before sending the model to Crawley Creatures.
Conclusion

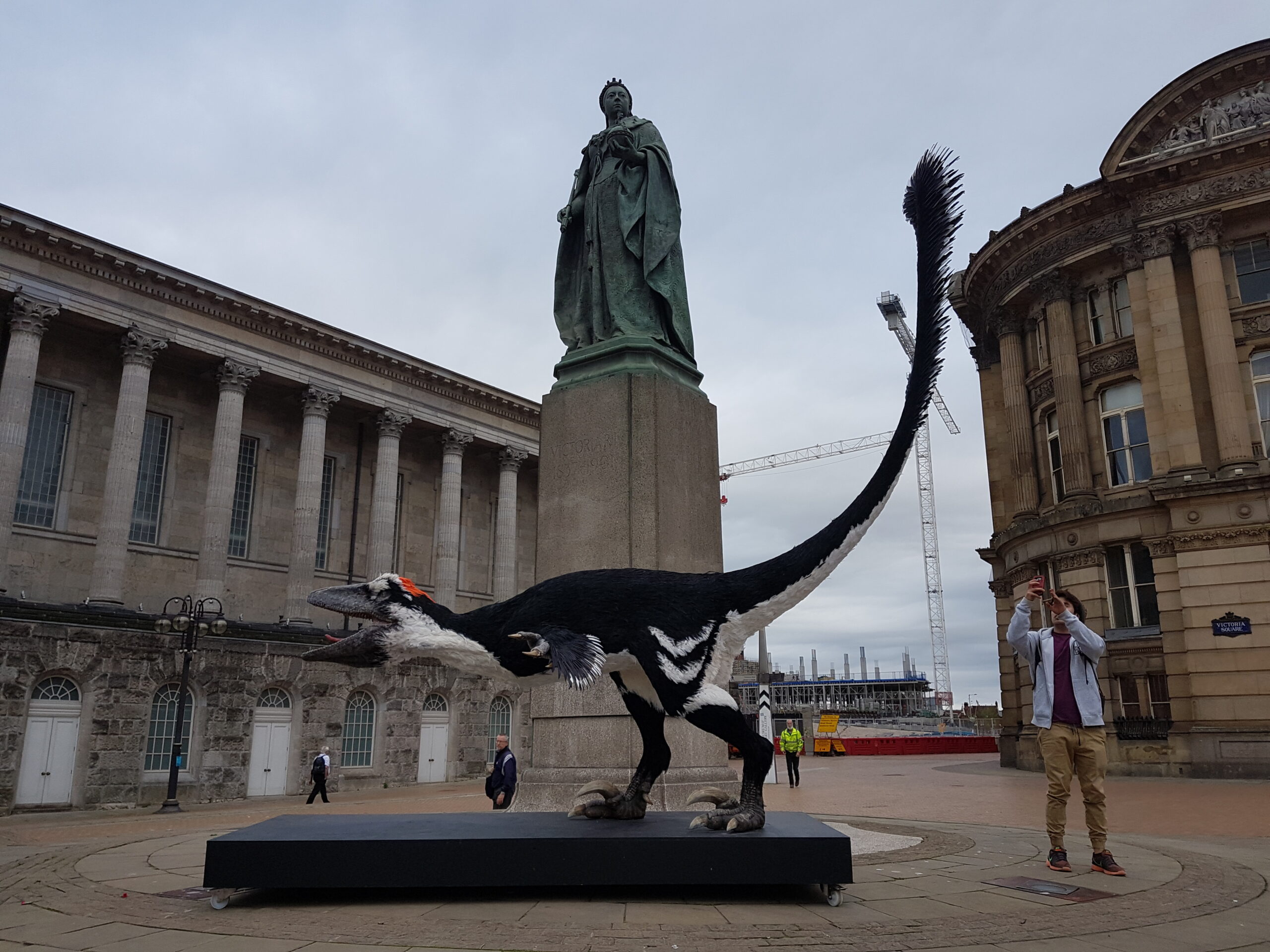

After sending the model to Crawley Creatures, they made the dinosaur look realistic with paint, glass eyes, feathers, and teeth. The model was then exhibited in cities across the country as part of the travelling show, Dinosaurs in the Wild.
